CNC Ring coilers are available for round, elliptical, and continuous-coil rings. AIM’s unique coiling approach is capable of producing extremely tight diameters and corresponding gap tolerances. Applications include high precision, tight tolerance, and automotive piston rings with shaped material to simple round wire retainer rings.

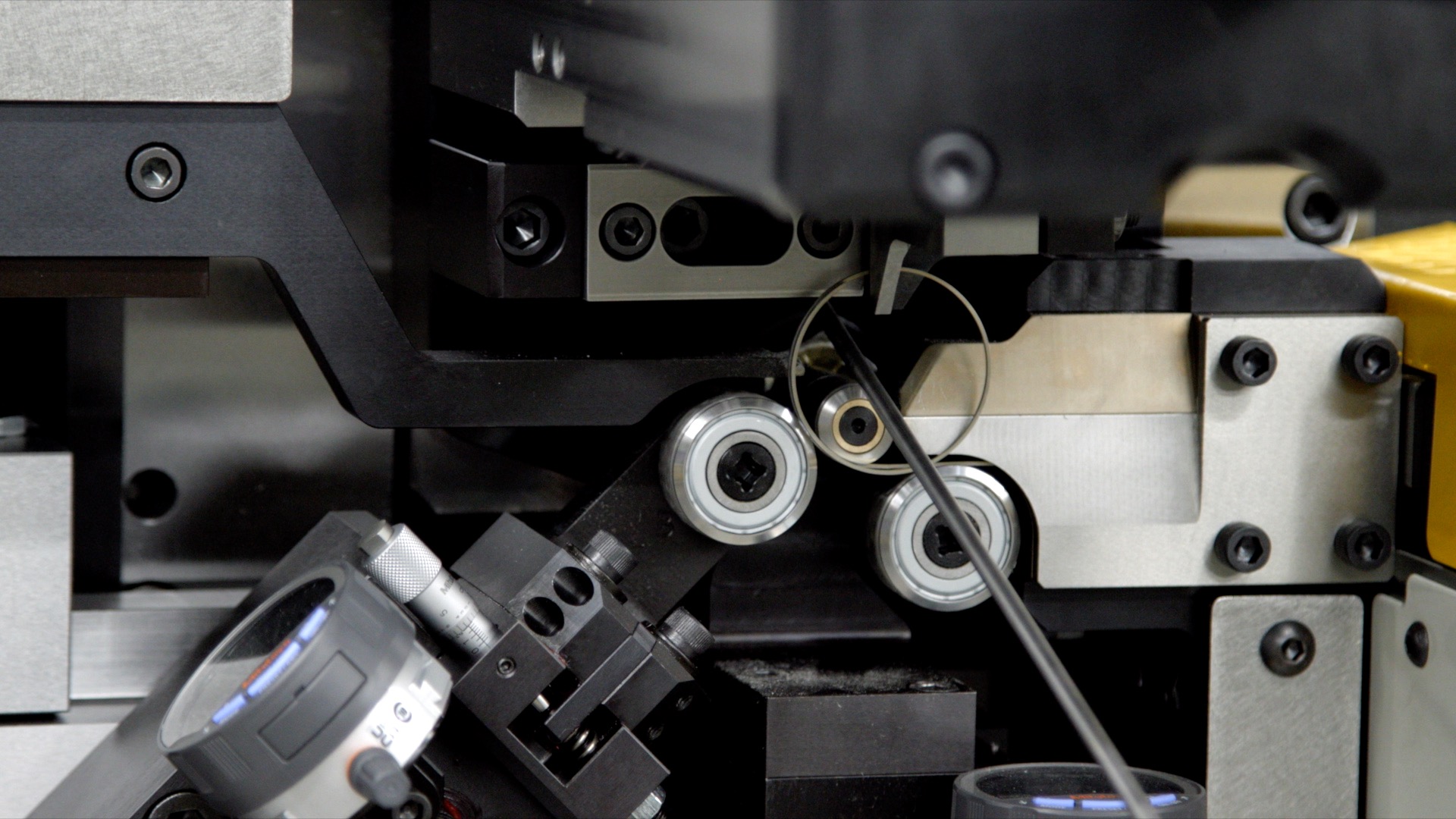

To see a real-world example of Automated Industrial Motion ring coiling systems at work, take a look at the video below. This custom coiling system is automating production of piston ring coils. Piston rings require extremely precise characteristics, including: flatness, dish, helix, gap, and light-tightness. All of these characteristics can be controlled through the PLC.
We build our custom ring coiling systems around our CNC spring coiling machines, which are capable of coiling wire in a variety of sizes. For round wire, our ring coilers can handle wire diamaters from .032″ to .135″. For rectangular wire, minimum demsions are .032″ and maximum dimensions are .250″.
Detailed specifications for our individual ring coilers are below:

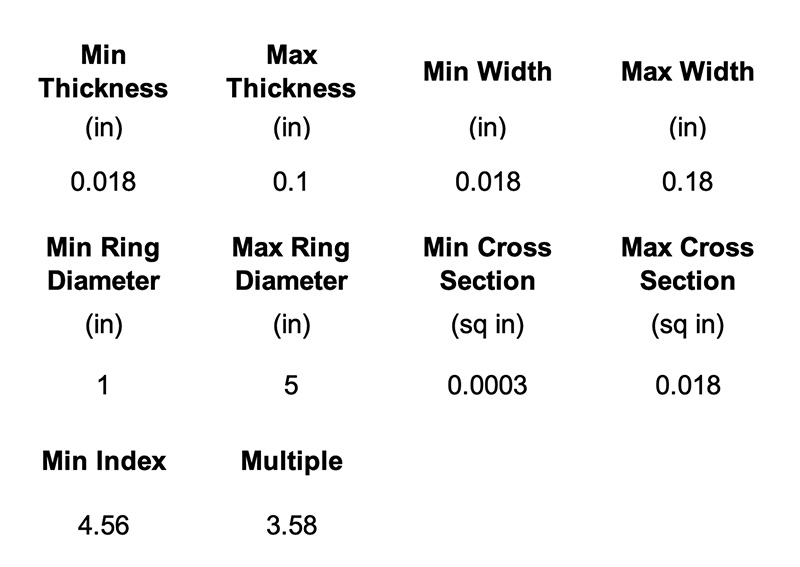

AIM 1000 Ring Coiler Specifications

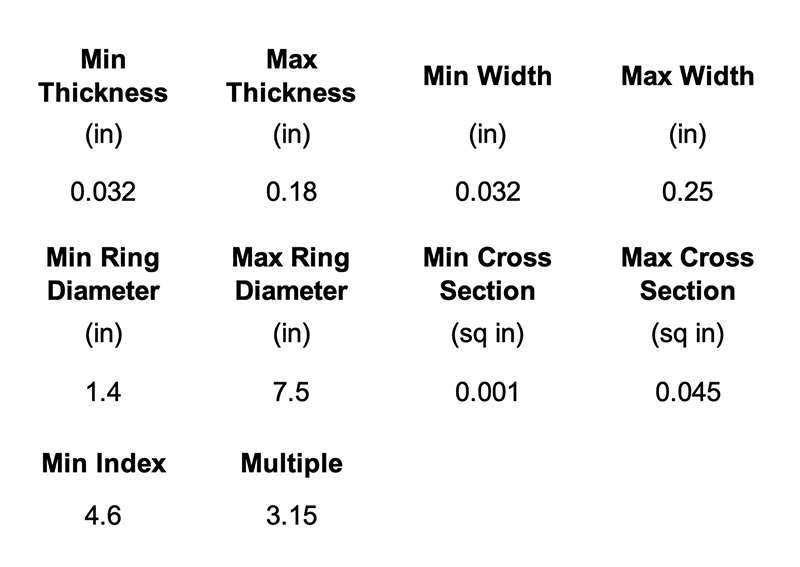

AIM 1500 Ring Coiler Specifications

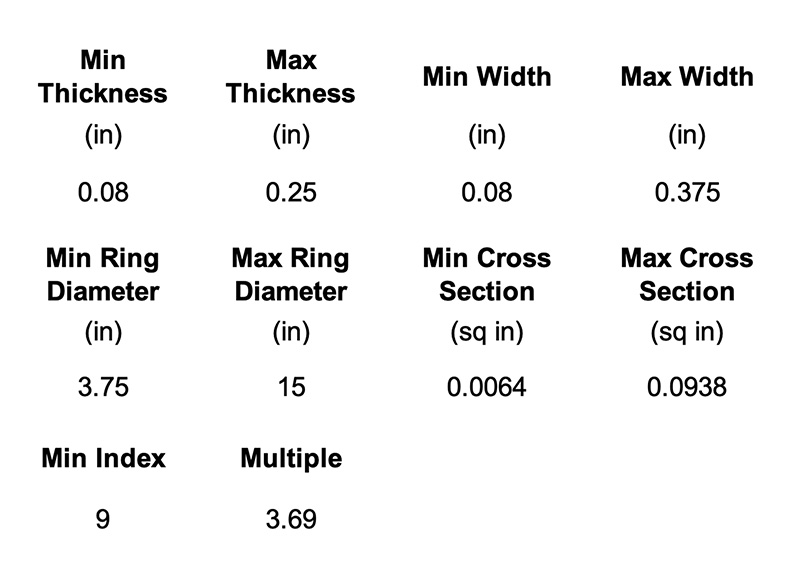

AIM 2000 Ring Coiler Specifications

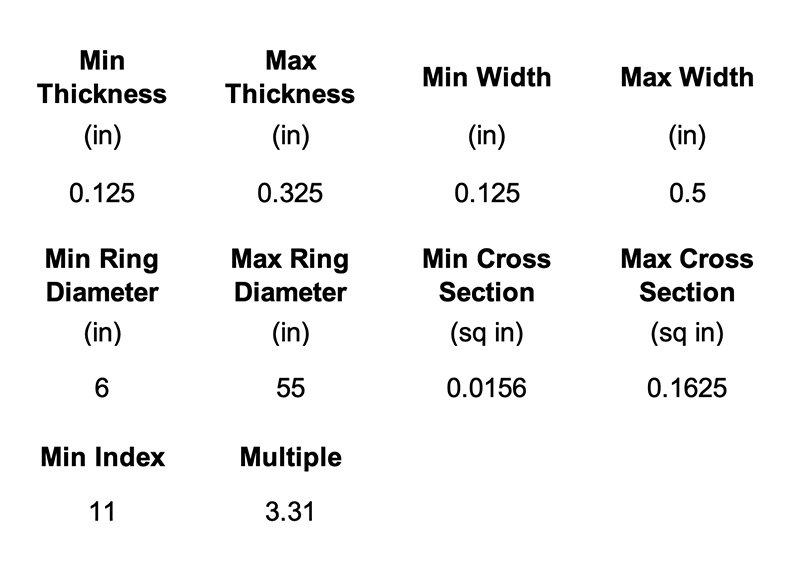

AIM 2500 Ring Coiler Specifications
